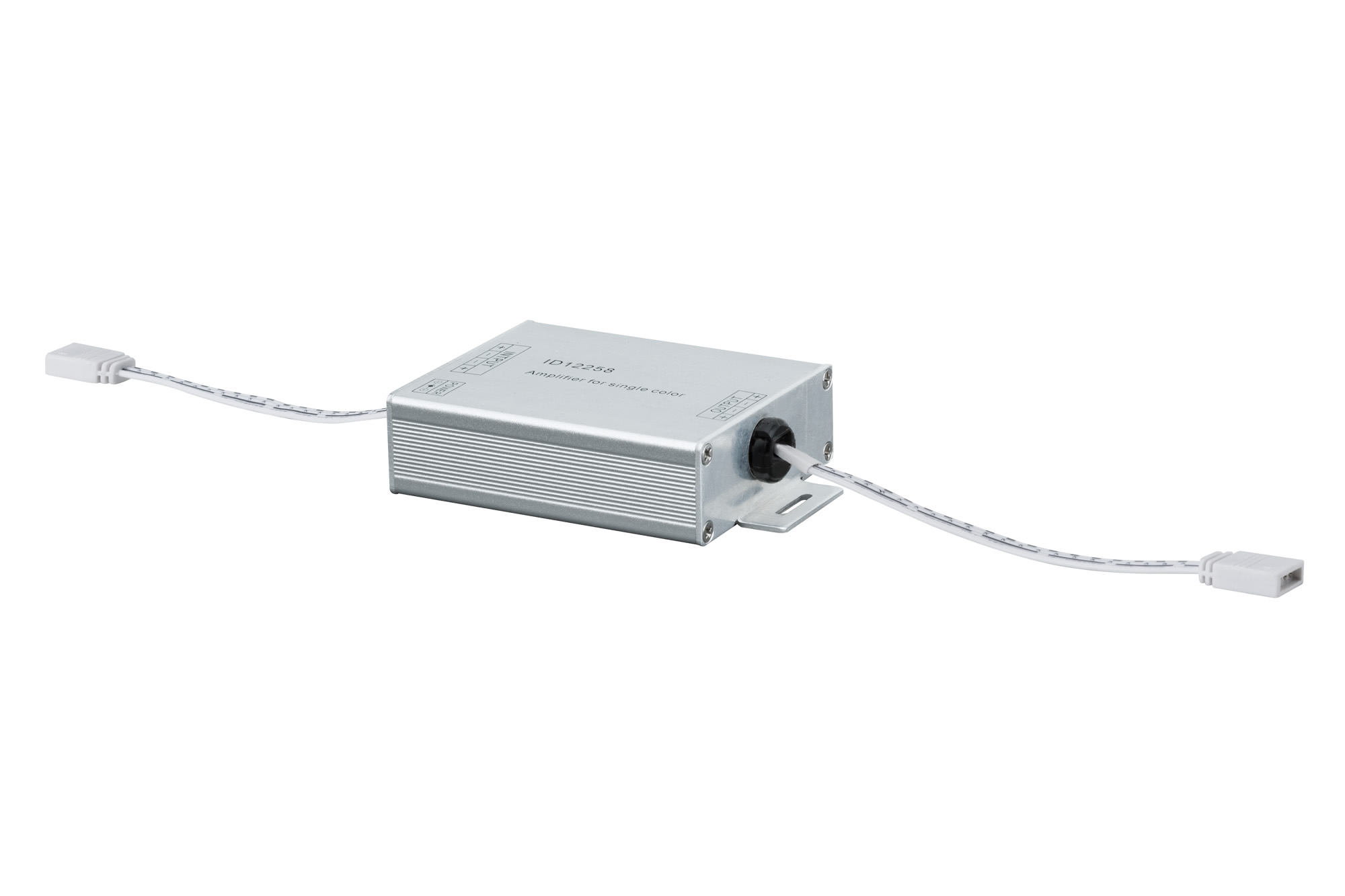

YourLED dimming/switch amplifier Paulmann Lighting

For amplifying the control signal from the YourLED dimmer/controller type 70461. This is how to use a remote control to synchronously control larger monochrome YourLED, YourLED ECO or DECO strip systems. An additional power supply unit is attached to each amplifier to increase the power of the system.

  ARTICLE    70452 ( 704.52 )
  EAN          0
  Colour    Matt aluminium
  Depth    65 mm
  Dimensions (Height x Width x Depth)    H: 24 x B: 105 x T: 65 mm
  Dimmable    No
  Height    24 mm
  Installation site    Universal
  Installation site (recommendation)    Universal
  MM symbol    MM symbol
  Material    Metal
  Maximum wattage    Max. 60 W
  PROPERTIES    Easy plug-in system for hassle-free assembly, Incl. remote control for switching, dimming, controlling and programming, including linking line
  Technique    Accessories without bulbs
  Width    105 mm
  Color    Alu matt
  Current    5000 mA
  Operating voltage    DC 12 V
  Plug-and-socket connector    Plug-and-socket connector
  Protection class    Protection class III
  Starting time <    0,0 s
  Watt    Max. 60 W
