Furniture Luminaires

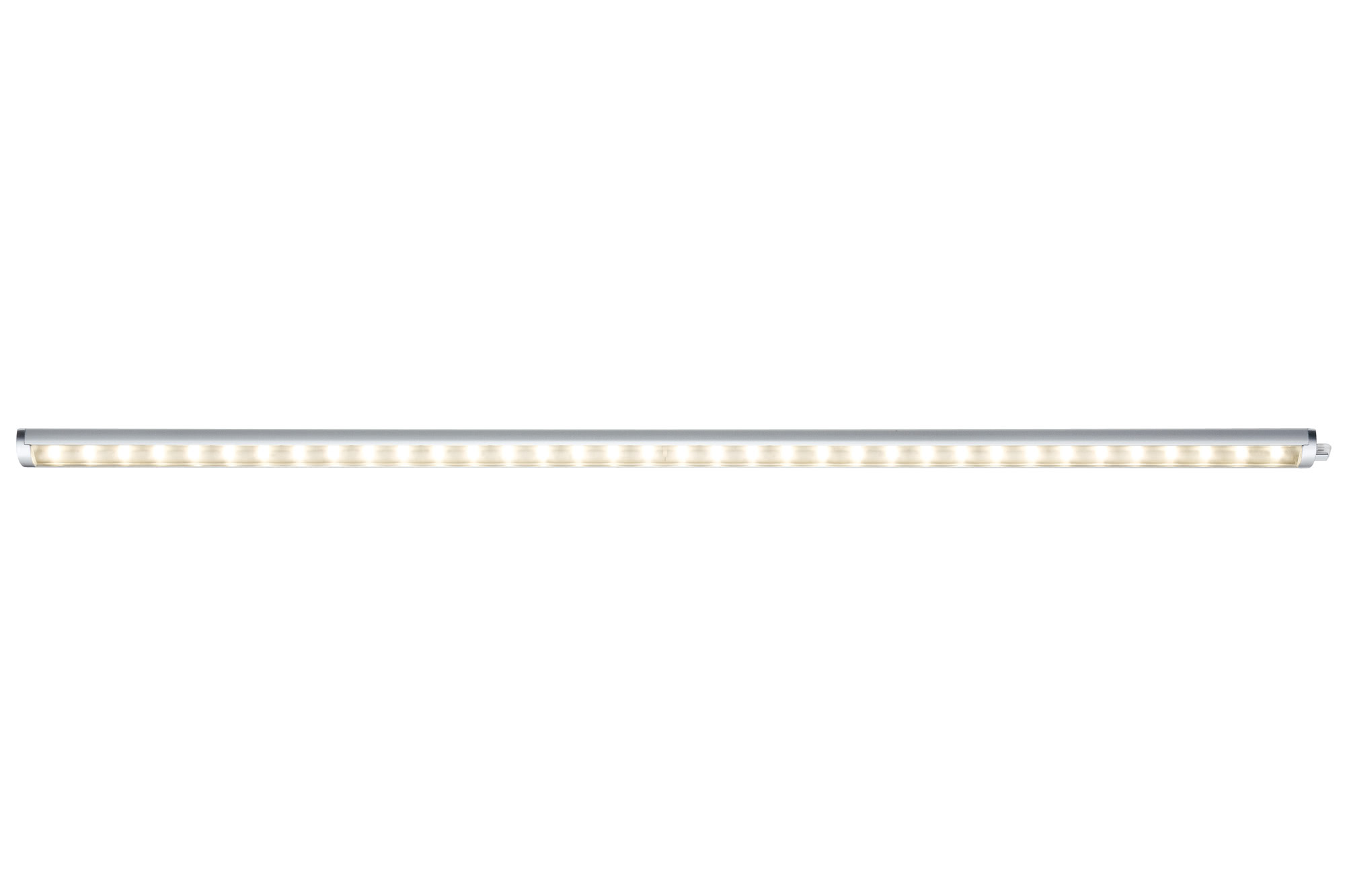

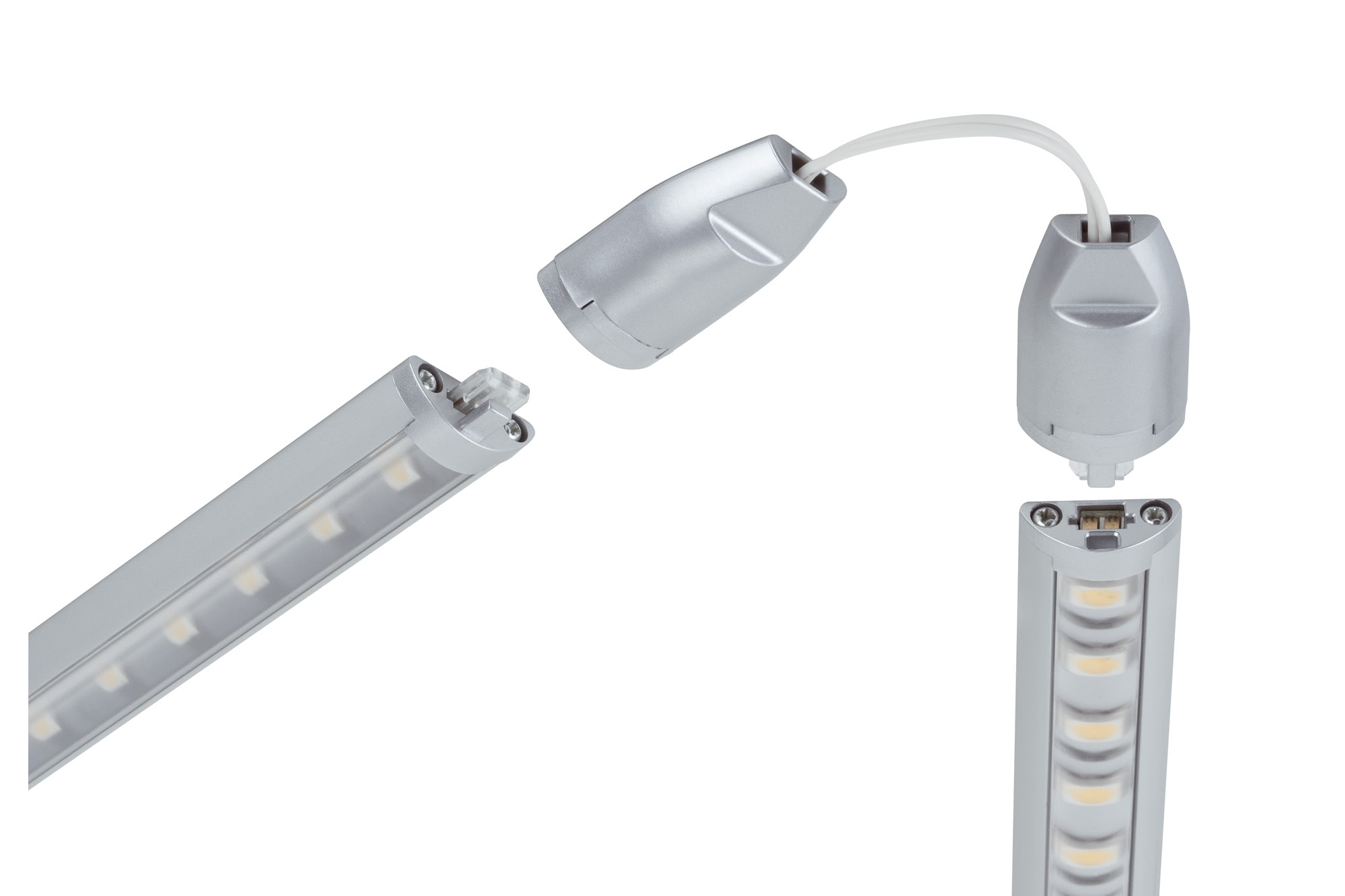

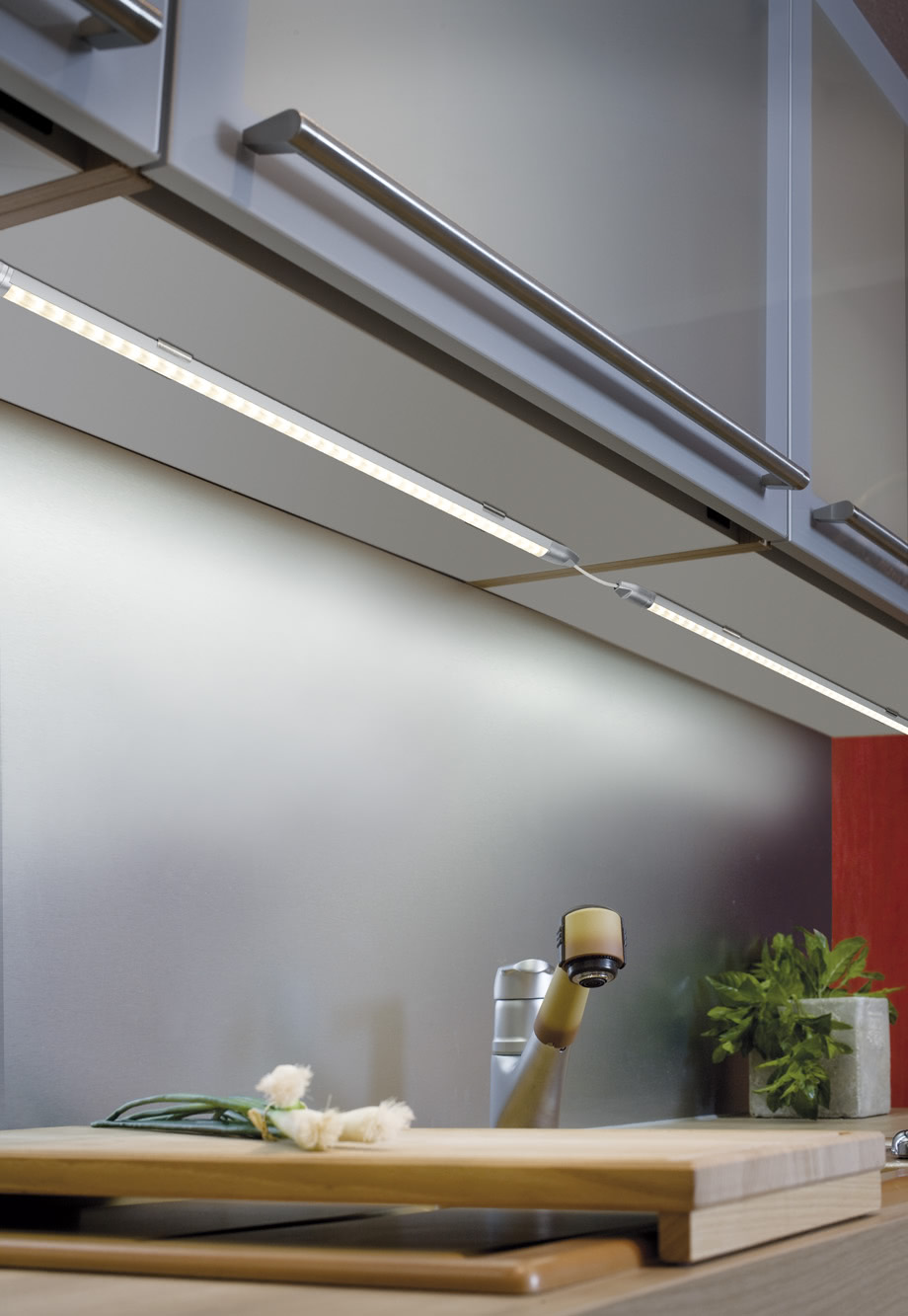

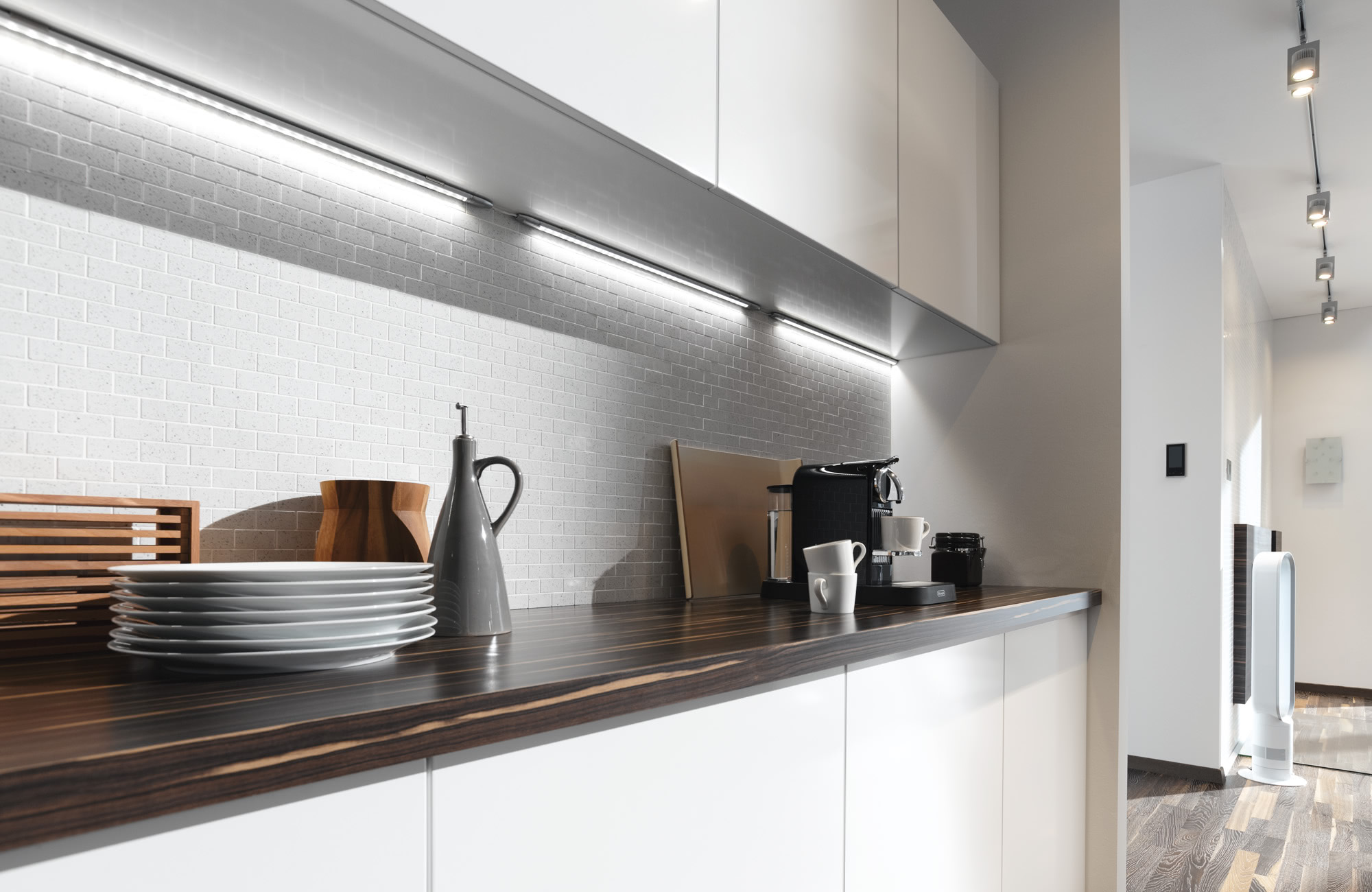

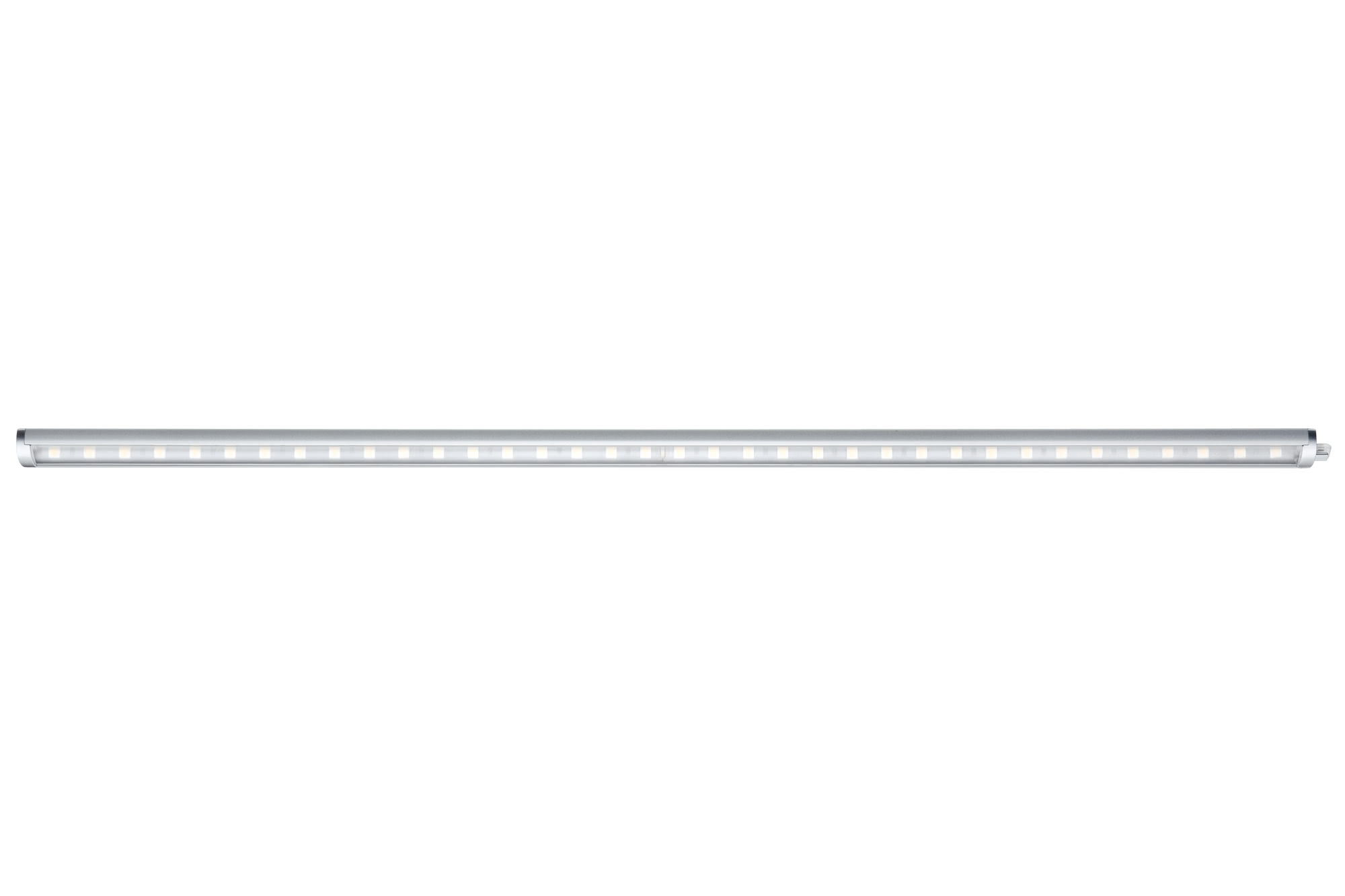

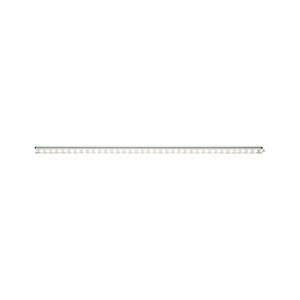

Whether you are using it as a cabinet interior light, an under-cabinet light or for display case illumination: LinkLight provides an efficient and at the same time very strong LED light. Its extremely slimline form using a high-quality aluminium profile with a satined acrylic covering allows it to be used in a wide variety of applications. It can be extended to include 3В additional light bars.

  ARTICLE    70284 ( 702.84 )
  EAN          0
  Beam angle    95 В°
  Bemessungs-/Nutzlichtstrom    380 lm
  Cable disconnector    Cable disconnector
  Colour    Aluminium, Satin
  Depth    22 mm
  Dimensions (Height x Width x Depth)    H: 10 x B: 660 x T: 22 mm
  Dimmable    No
  Europlug    Europlug
  Farbtemperatur    3000 K, 3.000 K
  Height    10 mm
  Inclusive lamp    Yes
  Installation site    Universal
  Installation site (recommendation)    Universal
  LichtstГ¤rke    260 cd
  Luminous intensity    260 cd
  MM symbol    MM symbol
  Material    Acrylic, Alu
  Nennlichtstrom (Lumen)    380 lm
  Number of component parts    1x
  Operating voltage    230/24 V
  Plug    Europlug (Typ C-CEE 7/16)
  Power consumption    11 W
  Power factor    0,809
  Protection class    Protection class II
  Rated life time    20000 h
  Rated luminous flux (Lumen)    380 lm
  Rated power    7,5 W
  Technique    LED
  Technology    LED
  Trafoleistung    30 VA
  Transformer depth    141 mm
  Transformer height    34 mm
  Transformer power    30 VA
  Transformer width    53 mm
  WEEE-Reg.-No    DE 39236390
  Width    660 mm
  ZГјndzeit <    0,0 s
  Color    Alu
  Color temp.    3000 K
  Component parts    7,5 W
  Life    20.000 h
  Lifetime    20.000 h

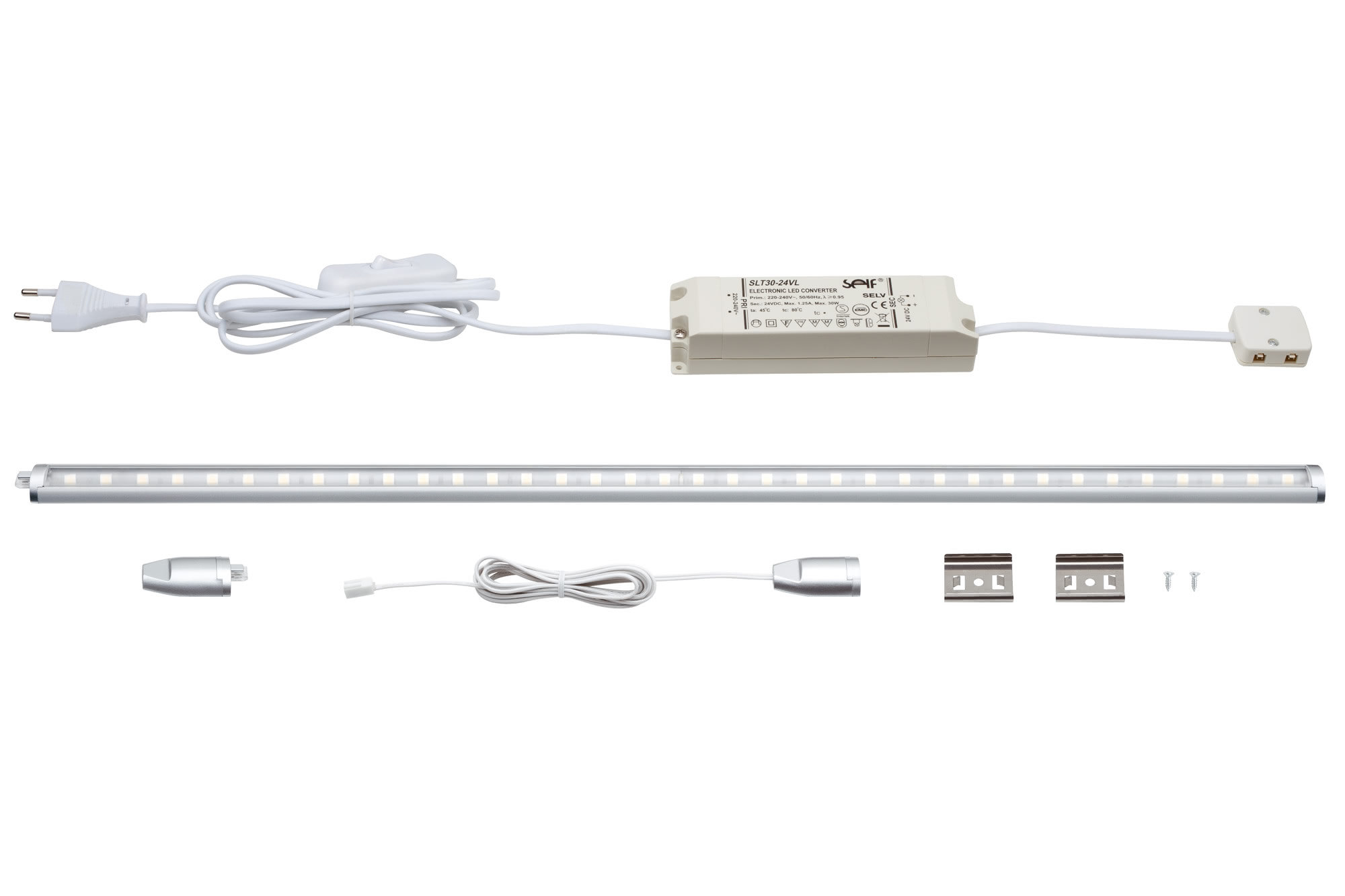

  Marketing type    Set

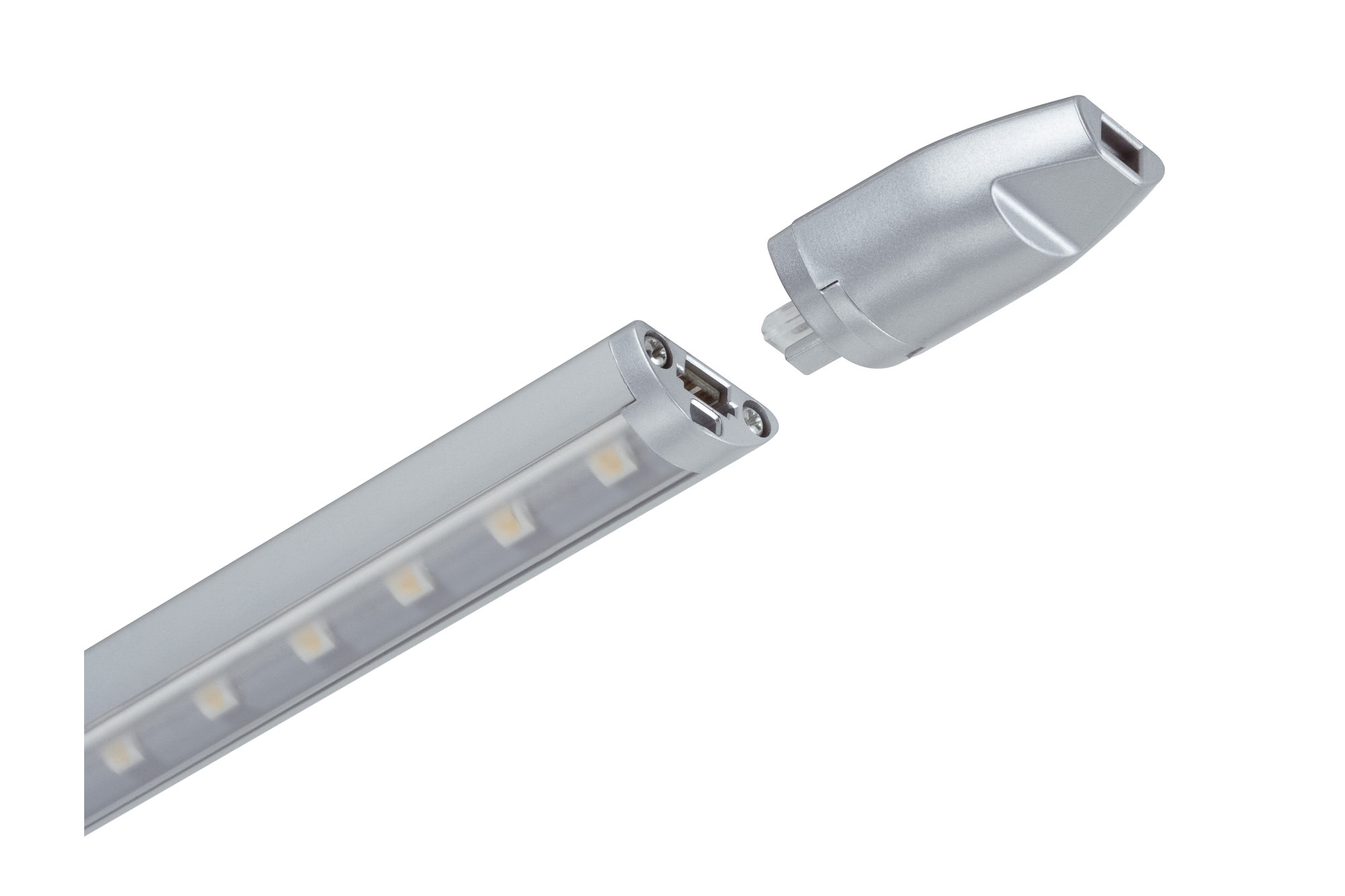

  Plug-and-socket connector    Plug-and-socket connector
  Rated beam angle    95 В°
  Starting time <    0,0 s
  Switch    With cable disconnector
  Useful luminous flux    380 lm
  Watt    7,5 W
